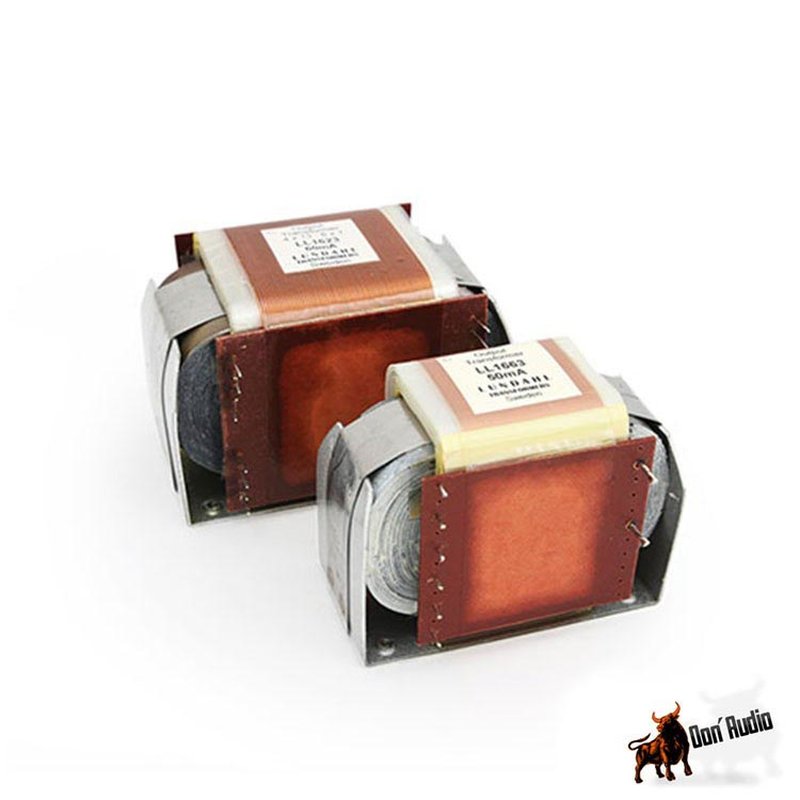

Lundahl LL1623 Tube Amplifier Output Transformer

Item number: DALL1623

Turns Ratio: 4 x 13:4 : 8 x 1

Category: Output Transformers


269,00 €

including 16% VAT., plus shipping

Short supply

There are variations of this item. Please select the variation you wish.



Lundahl LL1623 Tube Amplifier Output Transformer 90mA
Short supply

Shipping time: 2 - 3 workdays

269,00 € *
Lundahl LL1623 Tube Amplifier Output Transformer 120mA
Short supply

Shipping time: 2 - 3 workdays

269,00 € *
Lundahl LL1623 Tube Amplifier Output Transformer 60mA
Ready for shipment in 7 days

Shipping time: 9 - 10 workdays

269,00 € *
Lundahl LL1623 Tube Amplifier Output Transformer PP
Ready for shipment in 7 days

Shipping time: 9 - 10 workdays

269,00 € *
The LL1620, LL1623, LL1627 and LL9202 are output transformers for tube amplifiers. All transformers are based on the same core size, winding structure and secondaries, but differ in n umber of turns (and thus impedance level) of primaries. The transformers are highly sectioned with harmonically sized sections, which results in a minimum leakage inductance. This, combined with a low capacitance coil winding technique results in a wide f requency range. The transformers have a special audio C - core of our own production, which is gapped for desired DC current. The transformers are of open frame type suitable for mounting inside an amplifier housing.

Specifications

Turns Ratio: 4 x 13:4 : 8 x 1
Static resistance of primary (all in series):164 Ohm (4 - 41 Ohm)
Static resistance of each secondary (average): 0,4Ohm
Primary leakage inductance (all in series): 11mH
Max. recommended primary DC current (heat dissip. 7W): 150mA
Max. primary signal voltage r.m.s. at 30Hz. (all in series): Push-Pull 860V, Single End 380V

Application: PP SE
Shipping weight: 2,90 Kg
Product weight: 2,50 Kg
