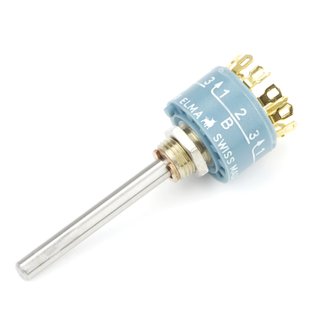

Elma Rotary switch Type 01 Eyelets 1 Wafer 2 x 6 Shorting 01-1263

Item number: DA01-1263

Category: Rotary Switches

Pins
Wafers, Poles x Positions

35,22 €

including 19% VAT., plus shipping (kleinteile)

From Price per unit
4 34,52 €
6 33,46 €
31 ordered, expected on 06.03.2023

Shipping time: 38 - 39 workdays



Compact 6 position selector switch, 25,000 switching cycles with up to 6.0 Ncm switching torque, gold plated contacts: 3 micron, robust metal housing with metal shaft, optional IP68 front panel sealing, operating temperature range: -40 to +85°C, various options and customization.

  • Compact rotaryswitch with 6 positions and 2 poles
  • 25,000 switching cycles with up to 6.0 Ncm switching torque
  • Gold plated contacts: 3 micron
  • Robust metal housing with metal shaft
  • Optional IP68 front panel sealing
  • Operating temperature range: -40 to +85°C
  • Various options and customization
  • 4mm shaft diameter / 39,2mm shaft lenght  (standard)


Shipping weight: 0,10 Kg
