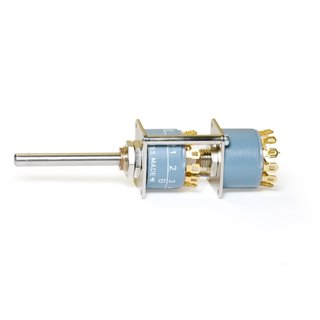

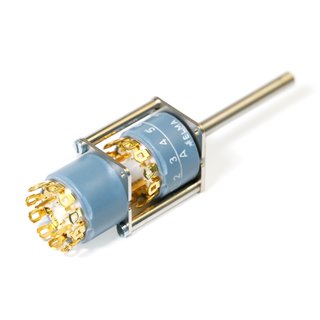

Elma Rotary switch Type 01 Eyelets 2 Wafer 1 x 12 Shorting, endless 01-2123

Item number: DA01-2123

Category: Rotary Switches

Pins
Wafers, Poles x Positions

68,02 $

including 19% VAT., plus shipping (kleinteile)

Recommended retail price: 45,43 $
on order

Shipping time: 2 - 3 workdays



Compact 12 positions selector switch, 25,000 switching cycles with up to 6.0 Ncm switching torque, gold plated contacts: 3 micron, robust metal housing with metal shaft, optional IP68 front panel sealing, operating temperature range: -40 to +85°C, various options and customization.

  • Compact 12 positions switch
  • 25,000 switching cycles with up to 6.0 Ncm switching torque (4Ncm standard)
  • Gold plated contacts: 3 micron
  • Robust metal housing with metal shaft
  • Optional IP68 front panel sealing
  • Operating temperature range: -40 to +85°C
  • Various options and customization
  • 4mm shaft diameter / 39,2mm shaft lenght  (standard)



Options:

Choose your Pins

Elma Type 01 switch eyelets and pcb pins

  • PCB Pins
  • Eyelets


Select Wafers, Poles x Positions

Elma poles position diagram
For multiple wafers divide the poles by the wafers to get the number of poles for each wafer.
Example: if you select 2 Wafers and 2 Poles you have 1 Pol on each wafer.


Other possible shaft options:
  • 3mm shaft diameter / 59mm lenght
  • 6mm shaft diameter / 28mm lenght

This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.




Shipping weight: 0,10 Kg
