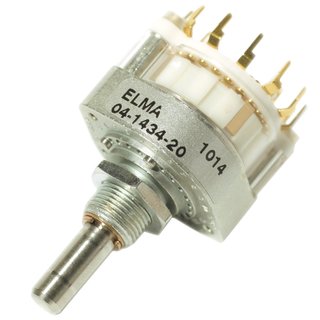

Elma Rotary switch Type 04 PCB Pins 1 Wafer 4 x 3 Non-Shorting 30° 04-1434-20

Item number: DA00204

Category: Rotary Switches


7748,16 ₽

including 19% VAT., plus shipping (kleinteile)

From Price per unit
10 6644,12 ₽
20 6546,85 ₽
on order

Shipping time: 2 - 3 workdays



Very robust and versatile 3 Position Multi Wafer Selector Switch.

  • Up to 3 Positions 4 pole selector switch
  • Very robust and versatile
  • 25,000 switching cycles with up to 20.0 Ncm switching torque
  • Gold plated contacts: 3 micron
  • Robust metal housing with metal shaft
  • Optional IP68 front panel sealing
  • Operating temperature range: -40 to +85°C
  • Various options and customization
  • 6mm 1/4" shaft


Switching mode: Non-Shorting
Pin type: PCB
Shipping weight: 0,10 Kg
