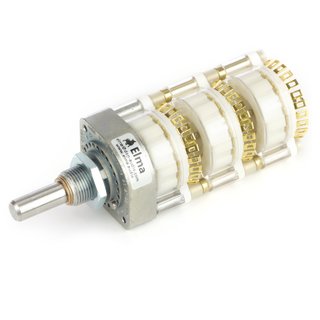

Elma Rotary switch Type 04 Eyelets 3 Wafers 3 x 12 Non-Shorting 04-3124
Very robust and versatile 12 Position Multi Wafer Selector Switch.
- Up to 12 Positions 3 pole three wafers selector switch
- Very robust and versatile
- 25,000 switching cycles with up to 20.0 Ncm switching torque
- Gold plated contacts: 3 micron
- Robust metal housing with metal shaft
- Optional IP68 front panel sealing
- Operating temperature range: -40 to +85°C
- Various options and customization
- Switchingmode: 15° Indexing angle for shorting versions and 30° for non-shorting versions.
- 6mm shaft
This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.
