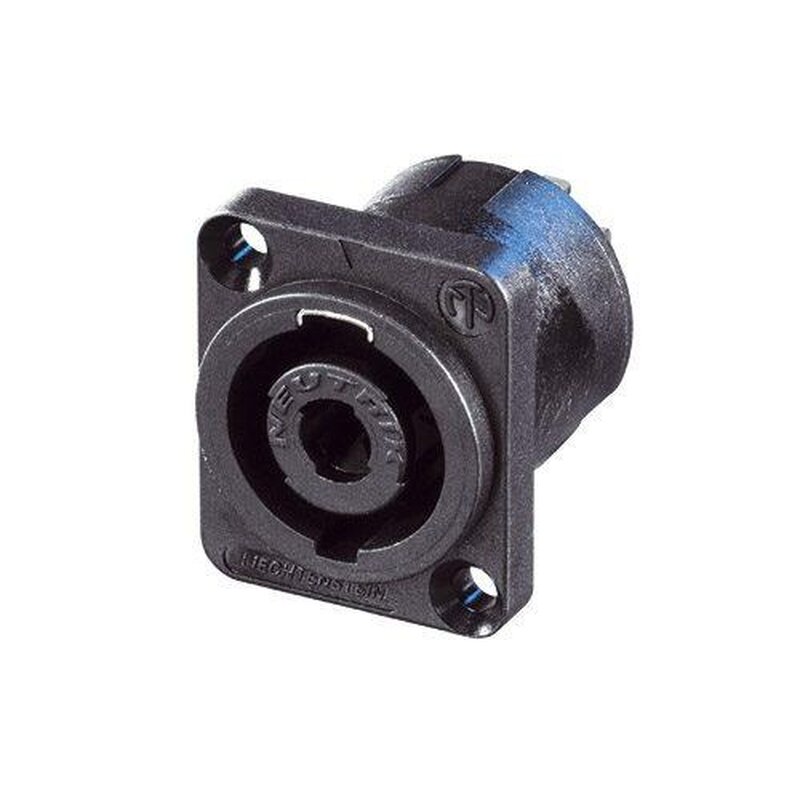

Neutrik NL4MP-UC Speakon 4 pole chassis connector for 40 A rms continuous, 50 A audiosignal duty cycle 50%. Black D-size flange, countersunk thru holes, 1/4" flat tabs

Item number: DON-NL4MP-UC

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Category: speakON


3,35 €

including 16% VAT., plus shipping

Ready for shipment in 49 days

Shipping time: 51 - 52 workdays



The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.



Features & Benefits

  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title
NL4MP-UC
Connection Type
speakON
Gender
male
Electrical
Contact resistance
? 3 m? (inner) (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 G? (after dampheat)
Rated current per contact
40 A rms continuous
Rated current per contact
50 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime
> 5000 mating cycles
Locking device
Quick Lock
Chassis shape
D
Layout
standard hole position, thru holes
Material
Contact plating
4 µm Ag
Contacts
Spring copper
Shell
Polyamide (PA 6 30 % GR) black
Environmental
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Color: black
Gender: male
Shipping weight: 0,10 Kg
