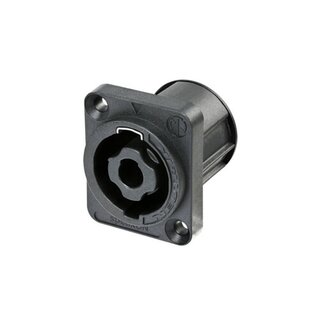

Neutrik NL4MDXX-V Speakon 4 pole chassis connector, black D-size flange
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features & Benefits
- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Produkt
Titel
NL4MP-M3
Verbindungstyp
speakON
Geschlecht
male
Elektrische Daten
Durchgangswiderstand
? 3 m? (inner) (after lifetime)
Durchschlagsfestigkeit
4 kVdc (peak)
Isolationswiderstand
> 1 G? (after dampheat)
Nennstrom pro Kontakt
30 A rms continuous
Nennstrom pro Kontakt
40 A audiosignal, duty cycle 50 %
Nennspannung
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanische Daten
Lebensdauer
> 5000 mating cycles
Verriegelung
Quick Lock
Einbaurichtung
rear
Gehäuseform
D
Layout
standard hole position, metal M3 thread
Material
Kontaktbeschichtung
4 µm Ag
Kontakte
Bronze (CuSn6)
Gehäuse
Polyamide (PA 6 30 % GR) black
Umwelt
Entflammbarkeit
UL 94 HB
Lötbarkeit
Complies with IEC 68-2-20
Temperaturbereich
-30 °C to +80 °C
| Color: |
|
| Gender: | male |
| Shipping weight: | 0,10 Kg |
