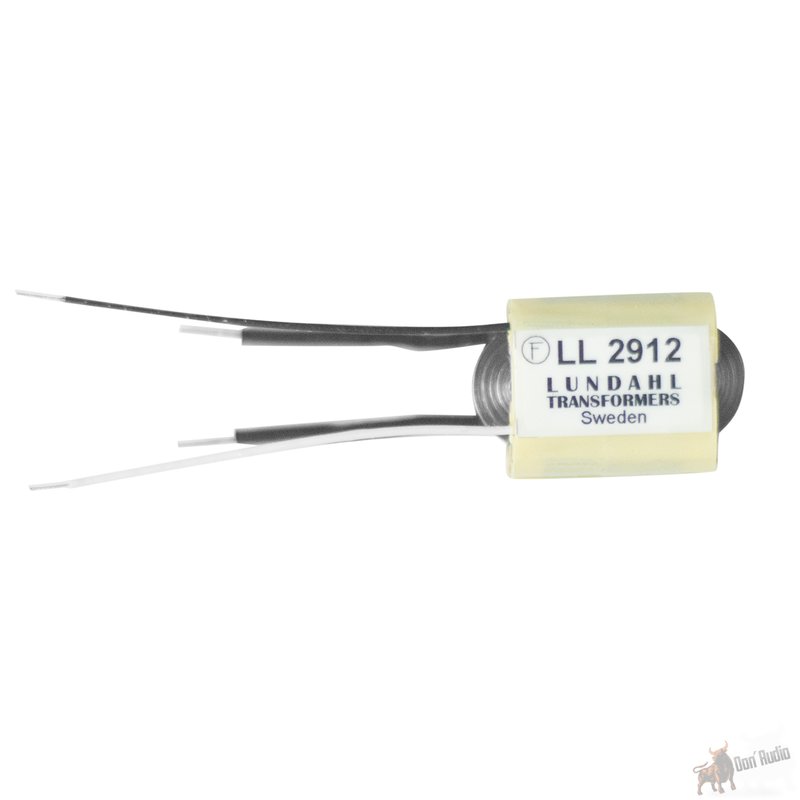

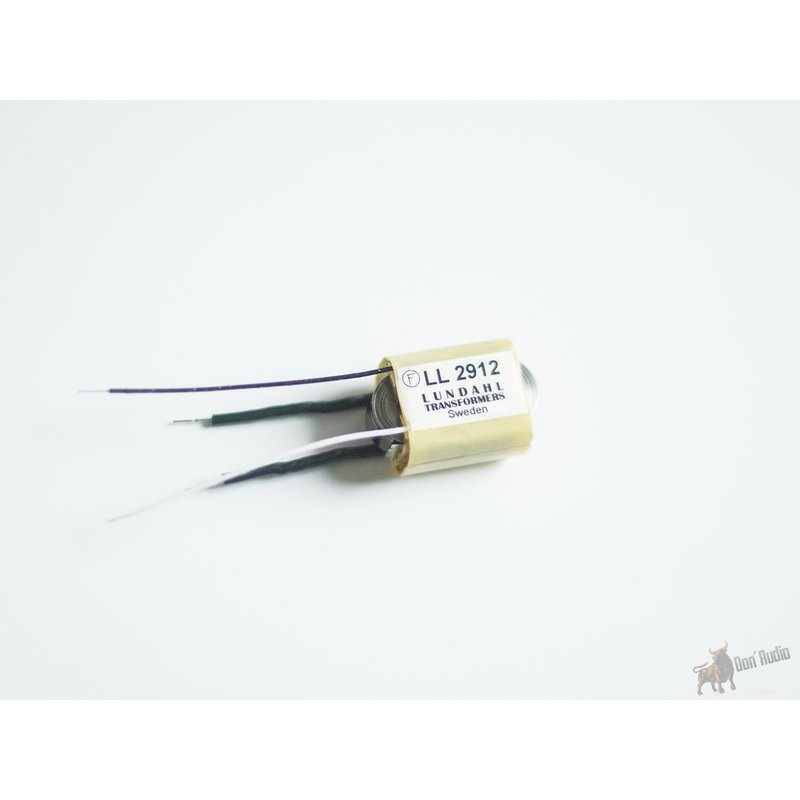

Lundahl LL2912 Ribbon Microphone Transformer
This transformer is an expert in the field of application ribbon microphones. You can change the stock transformer of many ribbon mics with the Lundahl ll2912 to improve the sound.
Dimensions: Length [leads not included] 27mm, Max diameter 19.5 mm
Weight: 17 g
Core: Amorphous strip core
Static resistance of primary : 0.05 Ohm
Static resistance of secondary: 59 Ohm
Transformer schematic
Technical details
Turns ratio: 1 : 37Dimensions: Length [leads not included] 27mm, Max diameter 19.5 mm
Weight: 17 g
Core: Amorphous strip core
Static resistance of primary : 0.05 Ohm
Static resistance of secondary: 59 Ohm
Transformer schematic
| Application: | Microphone |
| Shipping weight: | 0,10 Kg |
| Product weight: | 0,02 Kg |
