Fidelity-Audio

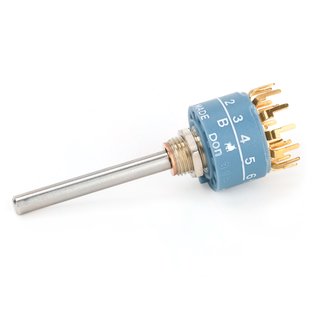

Elma Rotary switch Type 01 PCB Pins 1 Wafer 2 x 3 Non-Shorting (Angle 60°)

Item number: DA01-1234-20

Category: Rotary Switches

Pins
Wafers, Poles x Positions

35,22 €

including 19% VAT., plus shipping (kleinteile)

From Price per unit
4 34,52 €
6 33,46 €
Available now!

Shipping time: 2 - 3 workdays



Compact 12 positions selector switch, 25,000 switching cycles with up to 6.0 Ncm switching torque, gold plated contacts: 3 micron, robust metal housing with metal shaft, optional IP68 front panel sealing, operating temperature range: -40 to +85°C, various options and customization.

  • Compact 12 positions switch
  • 25,000 switching cycles with up to 6.0 Ncm switching torque (4Ncm standard)
  • Gold plated contacts: 3 micron
  • Robust metal housing with metal shaft
  • Optional IP68 front panel sealing
  • Operating temperature range: -40 to +85°C
  • Various options and customization
  • 4mm shaft diameter / 39,2mm shaft lenght  (standard)



Options:

Choose your Pins

Elma Type 01 switch eyelets and pcb pins

  • PCB Pins
  • Eyelets


Select Wafers, Poles x Positions

Elma poles position diagram
For multiple wafers divide the poles by the wafers to get the number of poles for each wafer.
Example: if you select 2 Wafers and 2 Poles you have 1 Pol on each wafer.


Other possible shaft options:
  • 3mm shaft diameter / 59mm lenght
  • 6mm shaft diameter / 28mm lenght

This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.




Switching mode: Non-Shorting
Pin type: PCB
Shipping weight: 0,10 Kg
