Description

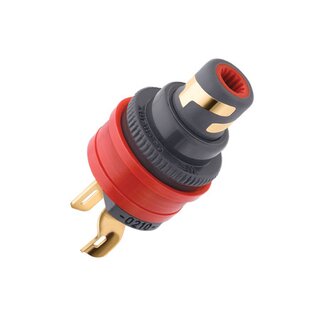

Uncompromising signal transmission for high-end audio setups is achieved with the WBT RCA chassis mount connector WBT-0210 Cu Red. Engineered for audiophiles and equipment builders who demand absolute signal purity, this connector utilizes pure copper conductors for both positive and negative poles to guarantee maximum conductivity and faithful sound reproduction.
Signal integrity is maintained across an extraordinary transmission bandwidth of up to 1 GHz. The sophisticated inner contact is designed as a secure tulip contact featuring a spring ring, ensuring constant contact pressure and ultra-low transition resistance. Meanwhile, the outer contact utilizes a patented double-wave contact mechanism for a reliable, tight connection with any standard RCA plug.
Product Features & Specifications:
- Conductor Material: Pure copper for maximum conductivity of positive and negative poles
- Transmission Bandwidth: Up to 1 GHz
- Characteristic Impedance: 75 ohms (typical), making it ideal for digital and analog audio applications
- Inner Contact: Tulip contact design with integrated spring ring
- Outer Contact: Patented double wave contact
- Mounting Hole Diameter: 12.0 mm
- Color Code: Red (for easy channel identification)
- Compatibility: Fully compatible with the WBT-0718 impact sound interrupter for mechanical decoupling
| Shipping weight: | 0,10 Kg |
