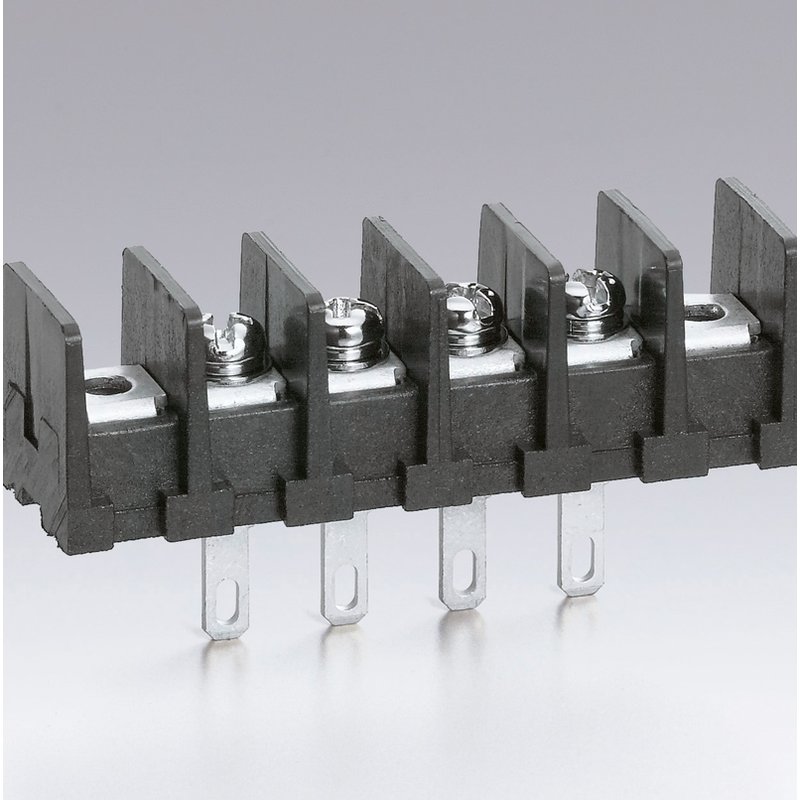

Terminal Block ML-40-S1AXS, 250V-10A, Spacing 7.62mm
Description
ML-40-S1AXS Terminal Block
Rating: 250V-10A
Pin spacing: 7.62mm
Isulation: DC500V, 1000MOhm min.
Dielectric strength: AC2000V (1 min)
Number of Poles:
Material: P.B.T.Screw: sems screw (M3×6)
Suitable wire / wire range: - / -
Corresponding article:
Terminal:as both solder and .110 Q.C. terminal (t0.8)
Specifications
Rating: 250V-10A
Pin spacing: 7.62mm
Isulation: DC500V, 1000MOhm min.
Dielectric strength: AC2000V (1 min)
Number of Poles:
Material: P.B.T.Screw: sems screw (M3×6)
Suitable wire / wire range: - / -
Corresponding article:
Terminal:as both solder and .110 Q.C. terminal (t0.8)
| Product weight: | 0,01 Kg |
