Description

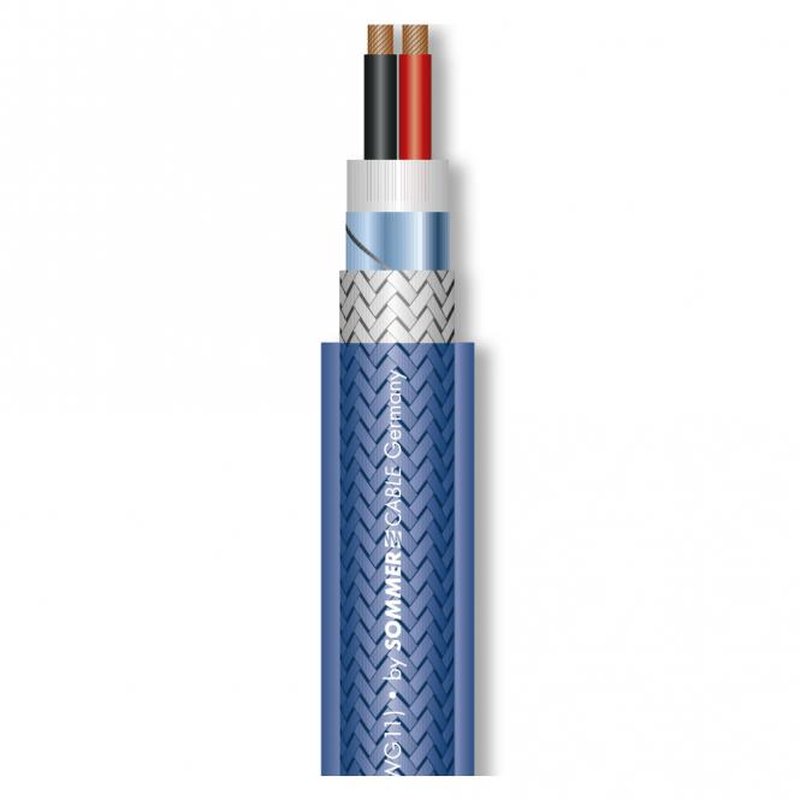

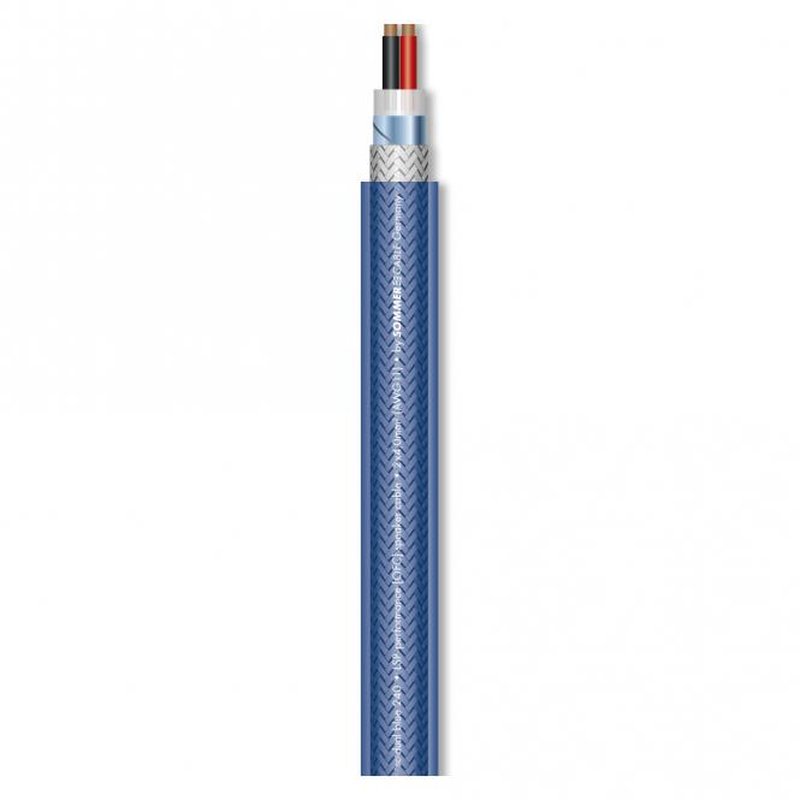

Speaker cable
Benefits:
- Tight, heard-capacitive stranding of the 2 cores
- Concentric ultra-compact stranding of the 504 x 0.10 mm individual strands
- Gas-foamed insulation with double cross-linking
- Shielding made of dense copper braiding with 95% optical coverage
- Use of government-approved copper quality with conductor smoothing (OFC Class6N ??99.9999%)
Technical specifications
Item number 485-0052-240
Name SC-DUAL BLUE
EAN 4049371235778
Properties analog
Properties OFC high purity copper
Application area installation
Application studio / broadcast
Application of speaker cable
Colour blue
Color detailed aqua
Structure (2LIY4.0mm) (ST) CY
Structure (audio) (2LIY4.0mm) CY
Sheath material S-PVC
Sheath [mm] 15.50
Number of channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm] 4.00
AWG (audio) 11
Tinned copper braid shielding
Copper strands (audio) 504
Copper wire (audio) [mm] 0.10
Conductor insulation material Skin-PE gas-injected
Conductor insulation [mm] 4.10
Weight at 1 m [g] 260
Fire load per m [kWh] 0.55
Round design
Presentation, packaging unit by the meter
Presentation, PU 50 m roll
Temperature min. [ C] -20
Temperature max. [ C] 70
Width [mm] 15.5
Height [mm] 15.5
Capacity wire / wire at 1m (audio) [pF] 65
Capacity wire / wire at 1 ft. (Audio) [pF] 19.812
Insulation resistance at 1 km (audio) [GΩ] 0.005
Insulation resistance at 1000 feet (audio) [GΩ] 0.0015
Conductor resistance at 1 km (audio) [Ω] 4.5
Conductor resistance at 1000 ft. (Audio) [Ω] 1.3716
BPVo Euro class Fca
| Shipping weight: | 0,26 Kg |
| Product weight: | 0,26 Kg |
