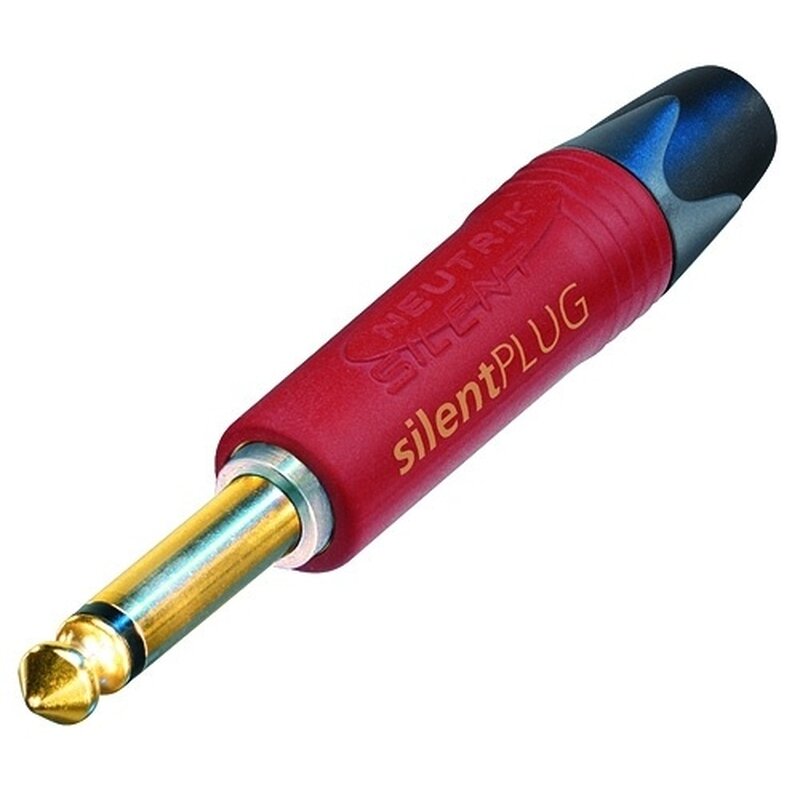

Neutrik NP2X-AU-SILENT Professional 1/4'' Plug silentPLUG

Item number: DON-NP2X-AU-SILENT

2 pole 1/4" professional phone plug, gold plated contacts, red rubber overlay, silent switch

Category: Phone


7,97 €

including 16% VAT., plus shipping

Available now!

Shipping time: 2 - 3 workdays



2 pole 1/4" professional phone plug, gold plated contacts, red rubber overlay, silent switch

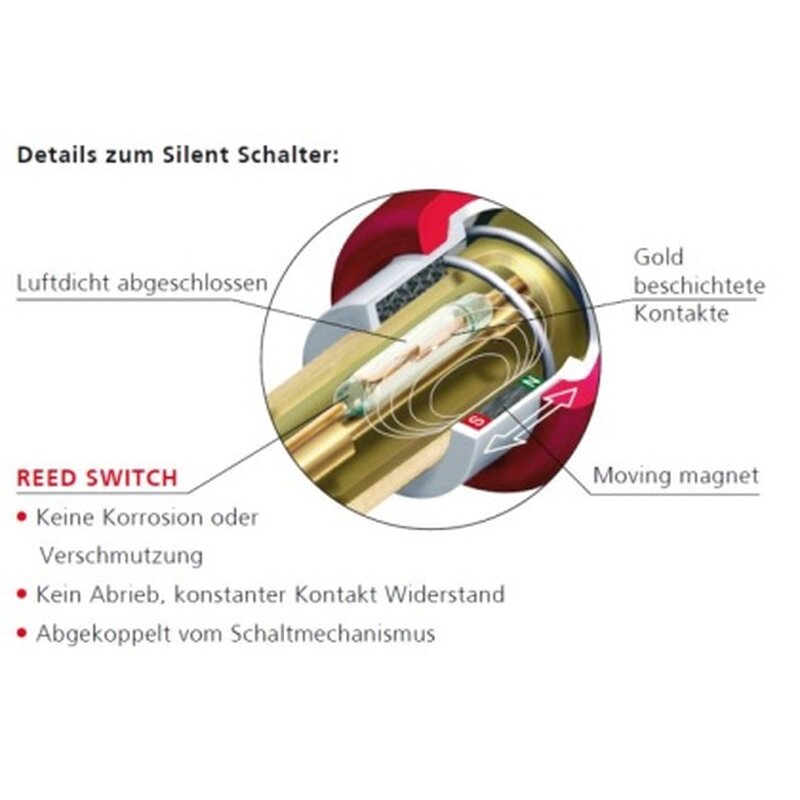

The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 10 '000 mating cycles. The new PX silentPLUG features a rugged metal shell enhanced with a rubber cushion overlay for improved shock protection.



Features & Benefits

  • Avoid pops and squeals
  • Hermetically sealed switching contacts
  • Lifetime beyond 10'000 mating cycles
  • Slim plug with industry proven and reliable chuck type cable strain relief
  • Sleek attractive design for convenient handling and connections
  • Rubber overlay on straight housing for best shock-protection and reliability
  • L-D versions available which accommodates cable O.D. up to 8 mm



ATTENTION!
For use with instrument (guitar) applications only. Damage may occur if connected to amplifier output.

Please note that the signal isn't muted with some types of active electric guitars which are equipped with tip-ring-sleeve jacks that tap to activate the guitar power supply.

Product
Title
NP2X-AU-SILENT
Connection Type
Plug
Gender
male
Electrical
Contact resistance
depends on mating connector m?
Dielectric strength
0.2 kVdc
Insulation resistance
> 2 G? (initial)
Rated current per contact
depends on mating connector A
Rated voltage
< 50 V
Mechanical
Cable O.D.
4 - 7 mm
Lifetime
> 1000 mating cycles
Wiresize
1 mm²
Wiresize
18 AWG
Wiring
Solder contacts
Material
Bushing
Polyacetal (POM) + PU
Contact plating
0.2 µm Au
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Brass (CuZn39Pb3)
Strain relief
Polyacetal (POM)
Environmental
Standard compliance
IEC 60603-11 / EIA RS-453
Solderability
Complies with IEC 68-2-20
Temperature range
-20 °C to +65 °C

Series: silentPLUG PX
Pins: 2-Pol
Shipping weight: 0,02 Kg
Product weight: 0,01 Kg
