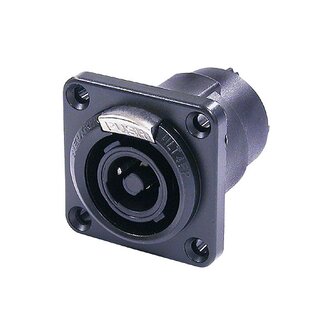

Neutrik NLT4FP-BAG Speakon 4 pole female chassis connector, black-chrome metal housing, solder contacts

Item number: DON-NLT4FP-BAG

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Category: speakON


9,76 €

including 19% VAT., plus shipping

Ready for shipment in 50 days

Shipping time: 52 - 53 workdays



The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.



Features & Benefits

  • Extremely robust metal housing designed for harsh and demanding environment
  • Ideal product for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Uses precise “Quick Lock” system
  • Mates with all currently available speakON products
  • Weatherproof built-in gasket meets IP 54 protection class (4 pole)
  • 4 pole version has UL Recognized components, CSA listed
  • 4 type range - also male cable connector and female receptacle on 4-pole version
Product
Title
NLT4FP-BAG
Connection Type
speakON
Gender
female
Electrical
Contact resistance
< 2 m? (inner) (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 10 G? (after dampheat)
Rated current per contact
40 A rms continuous
Rated current per contact
50 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime
> 5000 mating cycles
Wiresize
6 mm²
Wiresize
10 AWG
Wiring
Solder contacts
Locking device
Quick Lock
Chassis shape
square G-size flange
Layout
four thru holes
Material
Contact plating
4 µm Ag
Contacts
Spring copper
Insert
Polyamide (PA 6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1) black chrome
Environmental
Flammability
UL 94 HB
Protection class
IP 54 (mated condition)
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Material: Metal
Gender: female
Shipping weight: 0,10 Kg
