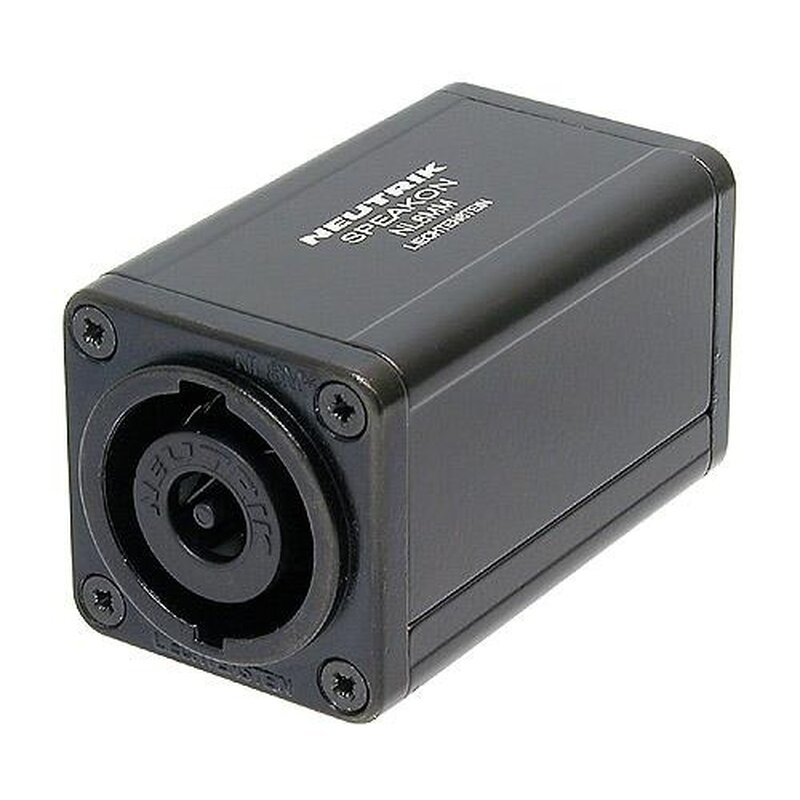

Neutrik NL8MM Speakon 8 pole speakON feedthrough adapter for cable extensions

Item number: DON-NL8MM

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Category: speakON


16,57 €

including 16% VAT., plus shipping

Ready for shipment in 49 days

Shipping time: 51 - 52 workdays



Product
Title
NL8MM
Connection Type
Adapter
Gender
male
Electrical
Contact resistance
? 3 m? (inner) (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 G? (after dampheat)
Rated current per contact
15 A rms continuous
Rated current per contact
30 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime
> 5000 mating cycles
Locking device
Quick Lock
Material
Contact plating
4 µm Ag
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6 30 % GR)
Shell
Polyamide (PA 6 30 % GR)
Environmental
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Series: speakON
Pins: 8-Pol
Shipping weight: 0,10 Kg
