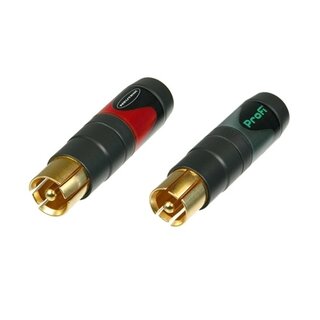

Neutrik NF2C-B/2 Phono (RCA) Profi Cable Connector Pair
Pair of professional `Phono Plug` (`RCA`- or `CINCH`- type) - marked red and black.
Including 2 x 2 strain reliefs for cable O.D. 3.0 mm to 7.3 mm. Additional strain relief for cable O.D. up to 8.0 mm available as accessory.
Features & Benefits
- Makes ground before signal contact and breaks signal before ground
- No more disturbing noise and broken speaker cones
- Precisely machined to our demanding quality standards
- Neutrik unique chuck type strain relief
- Gold plated contacts
- Sleek barrel with soft touch surface and coloured shrink sleeve
- Improved ground solder lug for ease soldering
Product
Title
NF2C-B/2
Connection Type
Profi
Gender
male
Electrical
Capacitance between contacts
? 7 pF
Contact resistance
>10G m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 5 G?
Rated current per contact
depends on mating connector / A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.0 - 7.3 mm
Lifetime
> 2000 mating cycles
Wiresize
1,5 mm²
Wiresize
16 AWG
Wiring
Solder contacts
Material
Contact plating
5 µm Au over 5 µm Ni
Contacts
Brass (CuZn39Pb3)
Insert
PBTP 20 % GR
Shell
Brass (CuZn39Pb3)
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 601-14
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
| Series: | Profi Cable Connectors Cinch |
| Shipping weight: | 0,05 Kg |
| Product weight: | 0,03 Kg |
