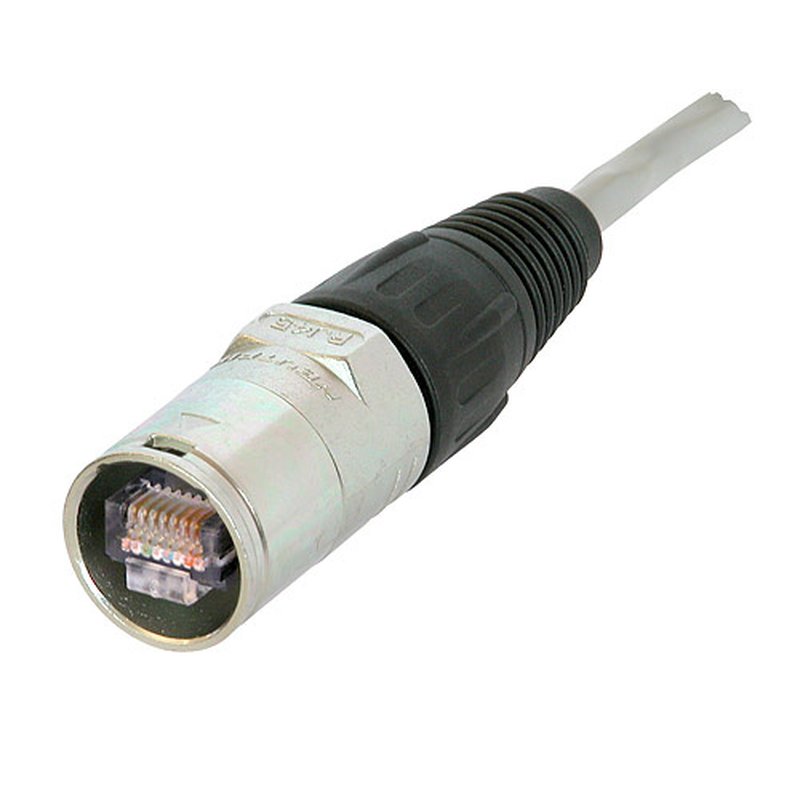

Neutrik NE8MC1 Cable connector carrier consisting of shell, fixing disk, chuck and boot

Item number: DON-NE8MC1

RJ45 cable connector carrier for preassembled RJ45 plugs consisting of shell

Category: Connectors


4,30 €

including 16% VAT., plus shipping

on order

Shipping time: 2 - 3 workdays



The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.



Features & Benefits

  • The RJ45 system for harsh and demanding environment
  • Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
  • O-ring gasket to achieve IP54 water protection
  • Accessories include color coded boots in 9 standard colors
Product
Title
NE8MC-1
Gender
male
Mechanical
Cable O.D.
max. 8 mm 0.315'
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Material
Boot
Polyamide (PA 6)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Collinox
Strain relief
Polyacetal (POM)
Environmental
Temperature range
-30 °C to +80 °C
Product specific
IMPORTANT!

Cable connectors do not include RJ 45 plug. RJ 45 cable assembly must be provided by end-user!


Series: etherCON
Shipping weight: 0,10 Kg
