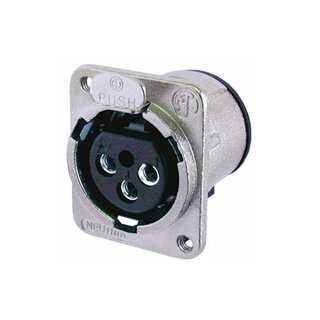

Neutrik NC3FDM3-V XLR Chassis Connector

Item number: NC3FDM3-V-DON

Category: XLR Chassis Mount


4,27 €
per 1 pcs

including 19% VAT., plus shipping (kleinteile)

Ready for shipment in 49 days

Shipping time: 51 - 52 workdays

pcs


3 pole female receptacle, vertical PCB mount, nickel housing, silver contacts, M3 mounting holes

Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component.



Features & Benefits

  • D-shape metal shell
  • Optimal RF protection using 3 shield contacts.
  • Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
  • Front or rear panel mount
Product
Title
NC3FDM3-V
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 5 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiring
vertical PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
D
Mounting
Mounting holes with M3 threads
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Environmental
Approvals
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Contacts: Silver pins
Series: D
Pins: 3-Pol
Shell: Nickel
Gender: female
Shipping weight: 0,10 Kg
