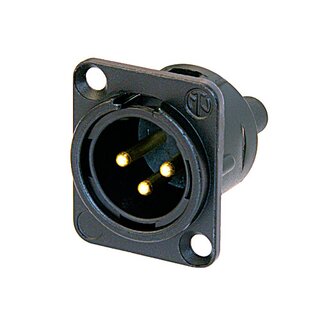

NEUTRIK NC3MDS1-B XLR-Receptacle 3polig

Item number: NC3MDS1-B-DON

Category: XLR Chassis Mount


10,00 €
per 1 pcs

including 19% VAT., plus shipping (kleinteile)

on order

Shipping time: 2 - 3 workdays

pcs


3 pole male receptacle, D-size metal body, screw terminals accommodating wire range 0.14mm² to 0.5mm² (AWG 26 -20), black metal housing, gold contacts, UL recognized component

Features & Benefits

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Screw terminals
Product
Title
NC3MD-S-1-B
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
= 4 pF
Contact resistance
= 5 mO (inner)
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GO (initial)
Rated current per contact
3 A
Rated voltage
50 V
Mechanical
Insertion force
= 20 N
Withdrawal force
= 20 N
Lifetime
> 1000 mating cycles
Wiresize
0.14 mm² bis 0.5 mm²
Wiresize
26 AWG - 20 AWG
Wiring
screw terminals
Locking device
Latch lock
Mounting direction
front
Chassis shape
D
Material
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Temperature range
-30 °C to +80 °C

Contacts: Goldplated pins
Pins: 3-Pol
Shipping weight: 0,10 Kg
