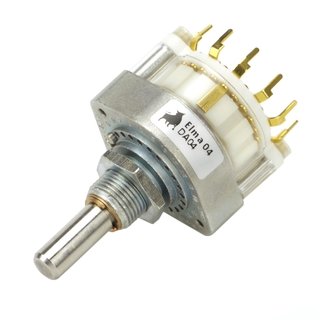

Elma Rotary switch Type 04 PCB Pins 1 Wafers 2 x 11 Shorting °15, 04-1213

Item number: DA00490

Very robust and versatile 11 Position Multi Wafer Selector Switch.

Category: Rotary Switches

63,06 €

including 19% VAT., plus shipping (kleinteile)

From Price per unit
2 58,97 €
10 58,10 €
20 55,50 €
Available now!

Shipping time: 2 - 3 workdays

  • Up to 11 Positions multi wafer selector switch
  • Very robust and versatile
  • 25,000 switching cycles with up to 20.0 Ncm switching torque
  • Torque: 1,5Ncm, 8Ncm (standard), 15Ncm, 20Ncm
  • Gold plated contacts: 3 micron
  • Robust metal housing with metal shaft
  • Optional IP68 front panel sealing
  • Operating temperature range: -40 to +85°C
  • Various options and customization
  • Switchingmode: 15° Indexing angle for shorting versions and 30° for non-shorting versions.
  • 6mm shaft

Elma 04 Switch Angles

This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.

Switching mode: Shorting
Pin type: PCB
Shipping weight: 0,10 Kg
