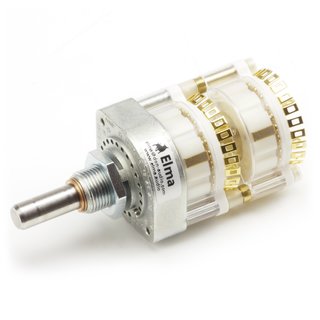

Elma Rotary switch Type 04 Eyelets 2 Wafers 8 x 5 Shorting 04-2453

Item number: DA00276

Category: Rotary Switches

128,44 €

including 19% VAT., plus shipping (kleinteile)

Recommended retail price: 135,00 €
(You save 4.86%, that is 6,56 €)
Available now!

Shipping time: 2 - 3 workdays

Very robust and versatile 5 Position 8 Pole Multi Wafer Selector Switch.

  • Up to 5 Positions 2 wafer selector switch with 8 poles (4 poles each wafer)
  • Very robust and versatile
  • 25,000 switching cycles with up to 20.0 Ncm switching torque
  • Gold plated contacts: 3 micron
  • Robust metal housing with metal shaft
  • Optional IP68 front panel sealing
  • Operating temperature range: -40 to +85°C
  • Various options and customization
  • 6mm shaft

This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.

Shipping weight: 0,10 Kg
