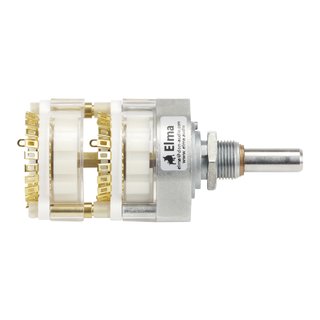

Elma Rotary switch Type 04 Eyelets 2 Wafers 4 x 11 Shorting °15 04-2213

Item number: DA00340

Very robust and versatile 24 Position Multi Wafer Selector Switch.

Category: Rotary Switches


82,95 €

including 16% VAT., plus shipping

Recommended retail price: 92,68 €
(You save 10.5%, that is 9,73 €)
Short supply

Shipping time: 2 - 3 workdays



  • 4 Pole total and 11 Positions, 2 wafer selector switch ( 2 Poles each wafer )
  • Very robust and versatile
  • 25,000 switching cycles with up to 20.0 Ncm switching torque
  • Torque: 1,5Ncm, 8Ncm (standard), 15Ncm, 20Ncm
  • Gold plated contacts: 3 micron
  • Robust metal housing with metal shaft
  • Optional IP68 front panel sealing
  • Operating temperature range: -40 to +85°C
  • Various options and customization
  • Switchingmode: 15° Indexing.
  • 6mm shaft



This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.


Shipping weight: 0,02 Kg
