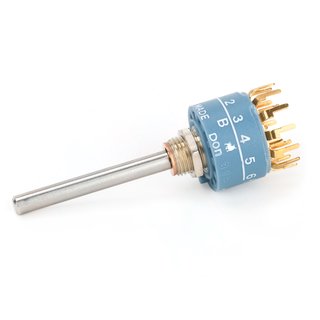

Elma Rotary switch Type 01 PCB Pins 1 Wafer 1 x 6 Non-Shorting, endless (Angle 60°)
Compact 12 positions selector switch, 25,000 switching cycles with up to 6.0 Ncm switching torque, gold plated contacts: 3 micron, robust metal housing with metal shaft, optional IP68 front panel sealing, operating temperature range: -40 to +85°C, various options and customization.
- Compact 12 positions switch
- 25,000 switching cycles with up to 6.0 Ncm switching torque (4Ncm standard)
- Gold plated contacts: 3 micron
- Robust metal housing with metal shaft
- Optional IP68 front panel sealing
- Operating temperature range: -40 to +85°C
- Various options and customization
- 4mm shaft diameter / 39,2mm shaft lenght (standard)
Options:
Choose your Pins
|
|
Select Wafers, Poles x Positions
For multiple wafers divide the poles by the wafers to get the number of poles for each wafer.
Example: if you select 2 Wafers and 2 Poles you have 1 Pol on each wafer.
Other possible shaft options:
- 3mm shaft diameter / 59mm lenght
- 6mm shaft diameter / 28mm lenght
This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.
Switching mode: | Non-Shorting |
Pin type: | PCB |
Shipping weight: | 0,10 Kg |
Product weight: | 0,01 Kg |
