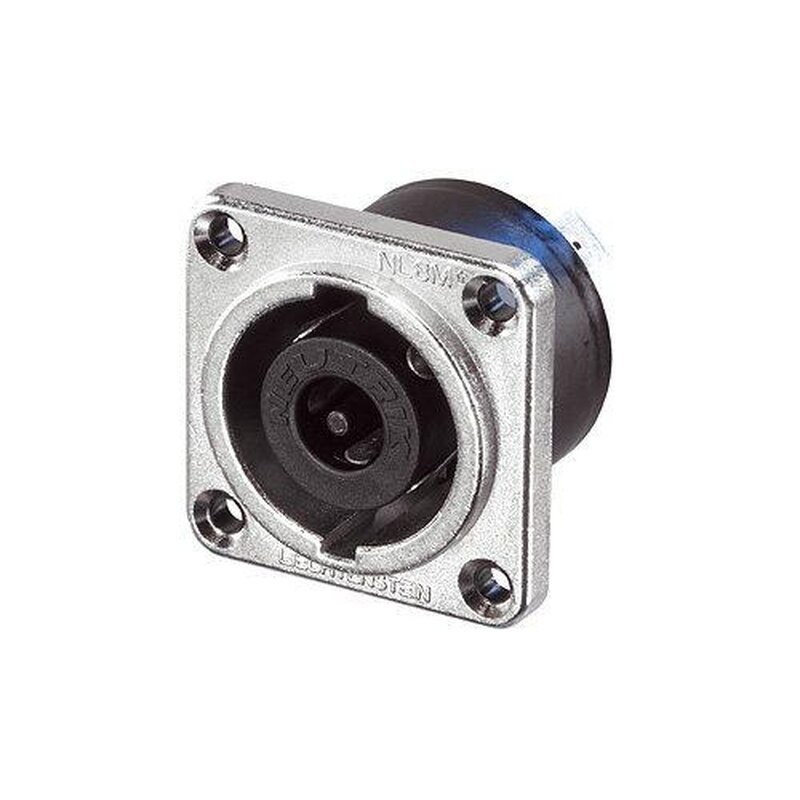

Neutrik NLT8MP Speakon 8-pole male chassis connector, Nickel housing, solder or ¼" flat tabs

Artikelnummer: DON-NLT8MP

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Kategorie: SpeakON Stecker


11,53 €

inkl. 19% USt., zzgl. Versand

Lieferung in 49 Tagen ab Bestellung

Lieferzeit: 51 - 52 Werktage



Beschreibung

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.



Features & Benefits

  • Extremely robust metal housing designed for harsh and demanding environment
  • Ideal product for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Uses precise “Quick Lock” system
    Mates with all currently available speakON products
Product
Title
NLT8MP
Connection Type
speakON
Gender
male
Electrical
Contact resistance
< 2 m? (inner) (after lifetime)
Dielectric strength
3 kVdc (peak)
Insulation resistance
> 10 G? (after dampheat)
Rated current per contact
40 A rms continuous
Rated current per contact
50 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime
> 5000 mating cycles
Locking device
Quick Lock
Chassis shape
square G-size flange
Layout
four thru holes
Material
Contact plating
4 µm Ag
Contacts
Spring copper
Insert
Polyamide (PA 6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1) Ni
Environmental
Flammability
UL 94 HB
Protection class
IP 52 (mated condition)
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Serie: speakON Einbausteckverbinder
Pins: 8-Pol
Versandgewicht: 0,10 Kg
