Lundahl LL1540 high level line input transformer

Artikelnummer: LL1540

Line Input Transformer LL1540

Kategorie: Input Übertrager


69,50 €

inkl. 19% USt., zzgl. Versand (kleinteile)

UVP des Herstellers: 92,16 €
(Sie sparen 24.59%, also 22,66 €)
ab Stückpreis
5 69,66 €
10 65,33 €
20 64,05 €
sofort verfügbar

Lieferzeit: 2 - 3 Werktage



Beschreibung

Line Input Transformer

LL1540



LL1540 is a high impedance, high level line input transformer.

The transformer consists of two coils, each with one primary and one secondary part separated by a electrostatic

shield. The core is a high permeability mu-metal core, and the transformer is housed in a mu-metal can.

Being a high impedance transformer, the LL1540 should normally be used in a series-series connection.



Turns ratio:
1 + 1 : 1 + 1

Dims (Length x Width x Height above PCB (mm)):
38 x 24 x 17

Pin layout
(viewed from component side) and winding schematics:

Spacing between pins:
5.08 mm (0.2")

Spacing between rows of pins:
27.94 mm (1.1")

Offset of earth pin from adjacent row:
2.54 mm (0.1")

Weight:
47 g

Rec. PCB hole diameter:
1.5 mm

Static resistance of each primary:
610W

Static resistance of each secondary:
800W

Distortion
(source impedance 600W ): + 20 dBU < 0.1% @ 50 Hz

+30 dBU < 1 % @ 50 Hz



Self resonance point :
> 60 kHz

Recommended load for best square-wave response
: 22 kW in series with 1nF

Frequency response
(source 600W, load 15 k W ) 5 Hz -- 50 kHz +/- 0.2 dB

Loss across transformer
(at 1 kHz with above termination): 0.5 dB

Isolation between windings / between windings and shield:
4 kV / 2 kV

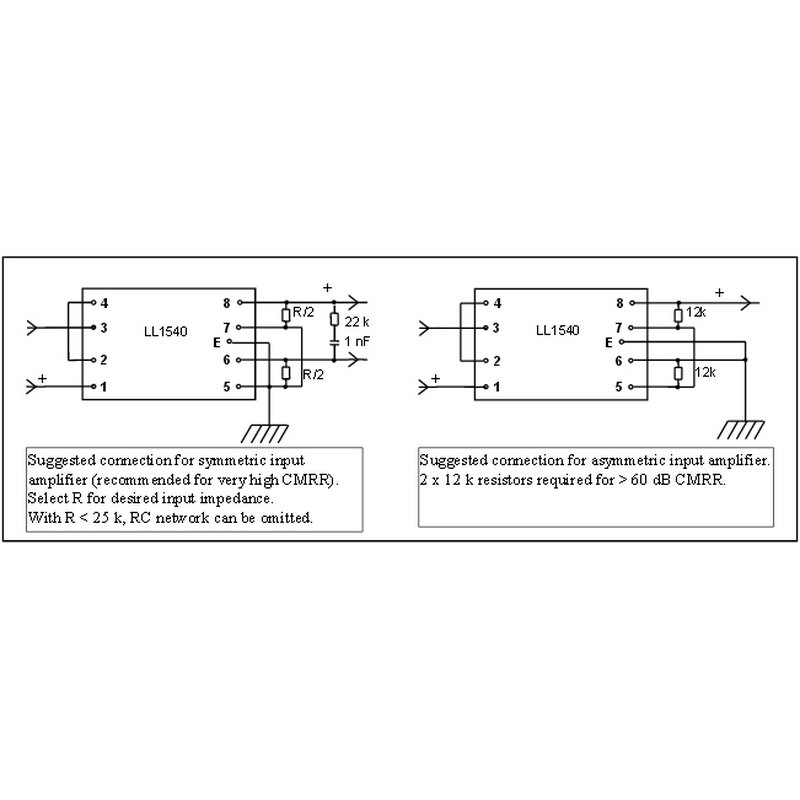

Suggested connection for symmetric input

amplifier (recommended for very high CMRR).

Select R for desired input impedance.

With R < 25 k, RC network can be omitted.

Suggested connection for asymmetric input amplifier.

2 x 12 k resistors required for > 60 dB CMRR.


Gerät: PRR 176 Vari-Mu
Anwendung: Line Input
Versandgewicht: 0,10 Kg
Artikelgewicht: 0,02 Kg
