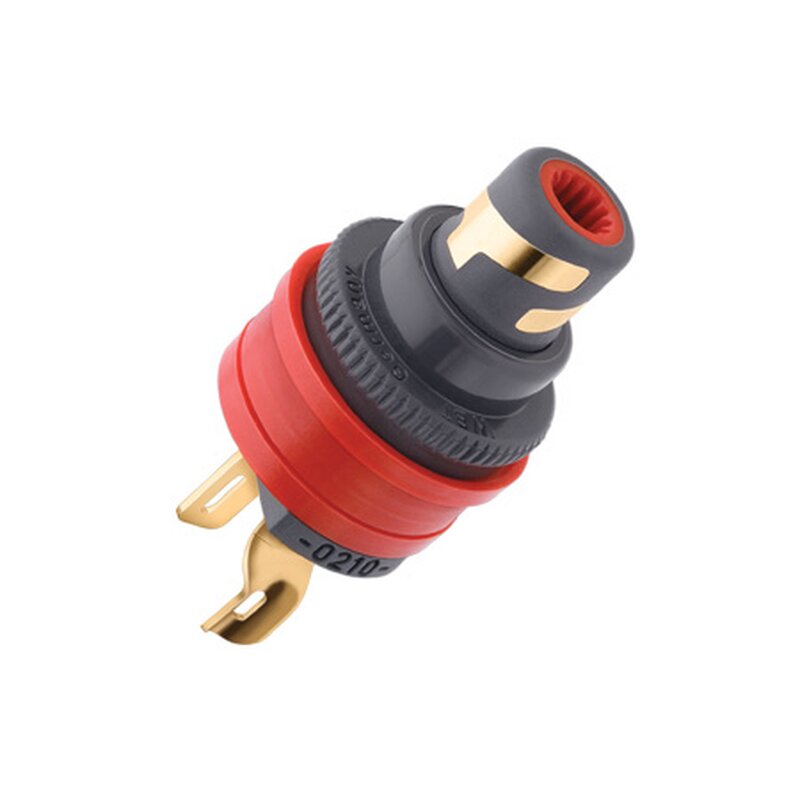

WBT RCA chassis mount connector WBT-0210 Cu Red
maximum conductivity thanks
to pure copper or fine silver
conductors for + and -
transmission bandwidth of 1 GHz (!)
inner contact designed as tulip contact with spring ring
outer contact in the form of a patented double wave contact
75 ohm (typ.) characteristic impedance
drill hole ø = 12.0 mm
All RCA housing type sockets can be installed with the impact sound interrupter WBT-0718.
transmission bandwidth of 1 GHz (!)
inner contact designed as tulip contact with spring ring
outer contact in the form of a patented double wave contact
75 ohm (typ.) characteristic impedance
drill hole ø = 12.0 mm
All RCA housing type sockets can be installed with the impact sound interrupter WBT-0718.
| Poids à l'expédition: | 0,10 Kg |
