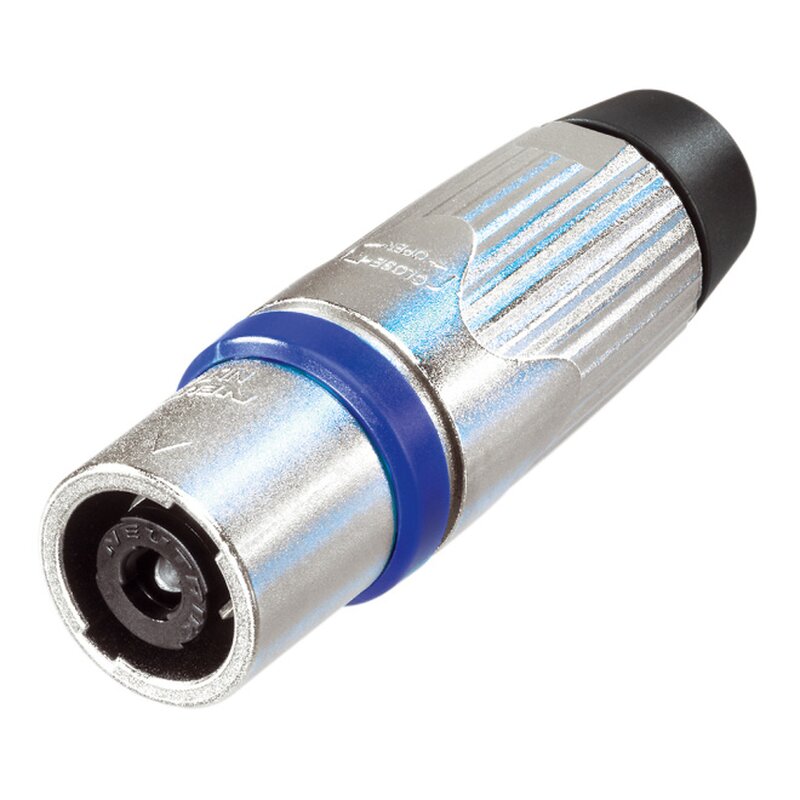

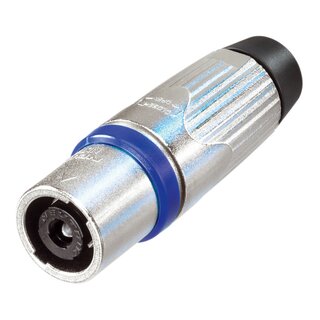

Neutrik NLT4MX Speakon 4 pole male cable connector, metal housing, chuck type strain relief

Artikelnummer: DON-NLT4MX

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Kategorie: SpeakON Stecker


10,63 €

inkl. 19% USt., zzgl. Versand

Lieferung in 49 Tagen ab Bestellung

Lieferzeit: 51 - 52 Werktage



Beschreibung

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.



Features & Benefits

  • Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
  • Robust and durable all metal housing
  • Sealing ring provides weatherproof IP54 rating
  • Reinforced metal quick lock system for ease and precise locking
  • Extra large solder contacts for up to 6mm² (AWG10) wires
  • Mate with all available speakON products
Product
Title
NLT4MX
Connection Type
speakON
Gender
male
Electrical
Contact resistance
< 2 m? (inner) (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 10 G? (after dampheat)
Rated current per contact
40 A rms continuous
Rated current per contact
50 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D.
9 - 16 mm
Cable retention
? 220 N (subject to cable O.D. and material)
Lifetime
> 5000 mating cycles
Wiresize
6 mm²
Wiresize
10 AWG
Wiring
Solder contacts
Locking device
Quick Lock (latch)
Material
Contact plating
4 µm Ag
Contacts
Spring copper
Insert
Polyamide (PA 6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1)
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Protection class
IP 54 (mated condition)
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Material: Metall
Versandgewicht: 0,10 Kg
