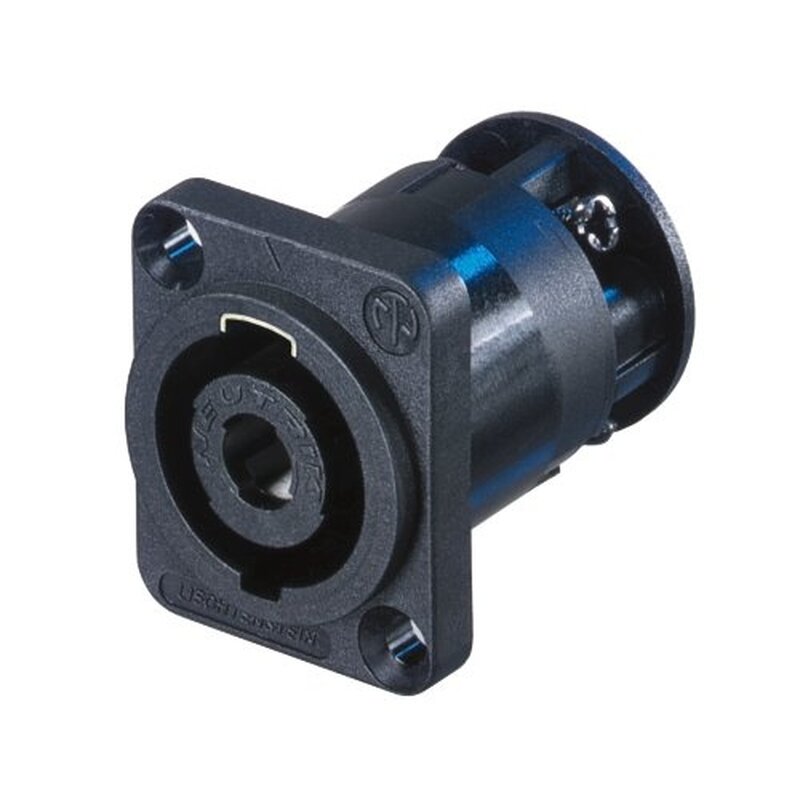

Neutrik NL4MP-ST Speakon 4 pole chassis connector, black D-size flange, countersunk thru holes, screw termination. This chassis connector is not airtight.

Artikelnummer: DON-NL4MP-ST

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Kategorie: SpeakON Stecker


3,86 €

inkl. 19% USt., zzgl. Versand

Lieferung in 49 Tagen ab Bestellung

Lieferzeit: 51 - 52 Werktage



Beschreibung

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.



Features & Benefits

  • Current rating 30 A rms
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title
NL4MP-ST
Connection Type
speakON
Gender
male
Electrical
Contact resistance
? 3 m? (inner) (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 G? (after dampheat)
Rated current per contact
30 A rms continuous
Rated current per contact
40 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime
> 5000 mating cycles
Wiresize
4 mm²
Wiresize
12 AWG
Wiring
screw terminals
Locking device
Quick Lock
Chassis shape
D
Layout
standard hole position, thru holes
Material
Contact plating
4 µm Ag
Contacts
Bronze (CuSn6)
Shell
Polyamide (PA 6 30 % GR) black
Environmental
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Farbe: schwarz
Versandgewicht: 0,10 Kg
