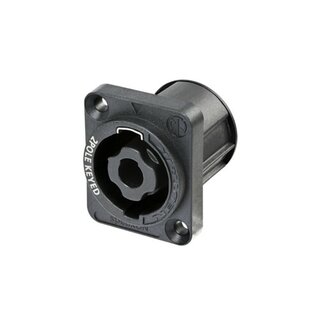

Neutrik NL2MP speakON Chassis Connector

Artikelnummer: DON-NL2MP

2 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs. Does not intermate with the 4-pole cable connector

Kategorie: SpeakON Stecker


2,34 €

inkl. 19% USt., zzgl. Versand (kleinteile)

sofort verfügbar

Lieferzeit: 2 - 3 Werktage



Beschreibung

2 pole chassis connector, black D-size flange, countersunk thruholes, 3/16" flat tabs. Does not intermate with the 4-pole cableconnector

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.



Features & Benefits

  • Current rating 30 A rms
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications
Product
Title
NL2MP
Gender
male
Electrical
Contact resistance
? 3 m? (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 G? (after dampheat)
Rated current per contact
30 A rms continuous
Rated current per contact
40 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime
> 5000 mating cycles
Locking device
Quick Lock
Chassis shape
D
Layout
standard hole position, thru holes
Material
Contact plating
4 µm Ag
Contacts
Bronze (CuSn6)
Shell
Polyamide (PA 6 30 % GR) black
Environmental
Temperature range
-30 °C to +80 °C
Product specific
Please note

Does not intermate with 4 pole cable connector


Farbe: schwarz
Serie: speakON Einbausteckverbinder
Versandgewicht: 0,02 Kg
Artikelgewicht: 0,01 Kg
