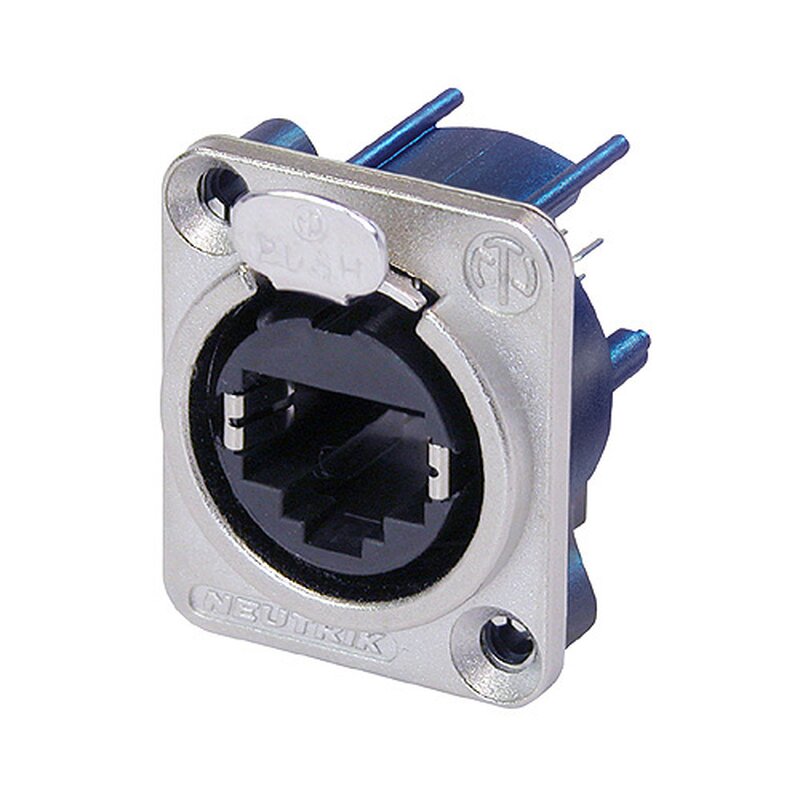

Neutrik NE8FDV Vertical PCB panel mount RJ45 receptacle

Artikelnummer: DON-NE8FDV

Vertical PCB panel mount RJ45 receptacle, D-shape metal flange with latch lock, max. panel thickness 4 mm

Kategorie: Netzwerk Video


4,42 €

inkl. 19% USt., zzgl. Versand

Lieferung in 49 Tagen ab Bestellung

Lieferzeit: 51 - 52 Werktage



Beschreibung

The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.



Features & Benefits

  • Accommodates NE8MC* or any standard RJ45 plug
  • Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Ground-panel connection
Product
Title
NE8FDV
Gender
female
Electrical
Contact resistance
< 10 m? (inner)
Dielectric strength
1 kVdc
Frequencyrange
1 - 100 MHz
Insulation resistance
> 0.5 G?
Rated current per contact
1,5 A
Rated voltage
50 V
Transmission performance
Class D
Standard compliance
TIA/EIA 586B, IEC11801
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Panel thickness
max. 4 mm 0.16'
Wiring
vertical PCB mount
Locking device
Latch lock
Chassis shape
D
Material
Contact plating
0.2 µm Au over Ni plating
Contacts
Bronze (CuSn8)
Insert
PBTP 15 % GR
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Environmental
Flammability
UL 94 V-0
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Serie: etherCON Einbaubuchsen
Pins: RJ45
Gehäuse: Nickel
Versandgewicht: 0,10 Kg
