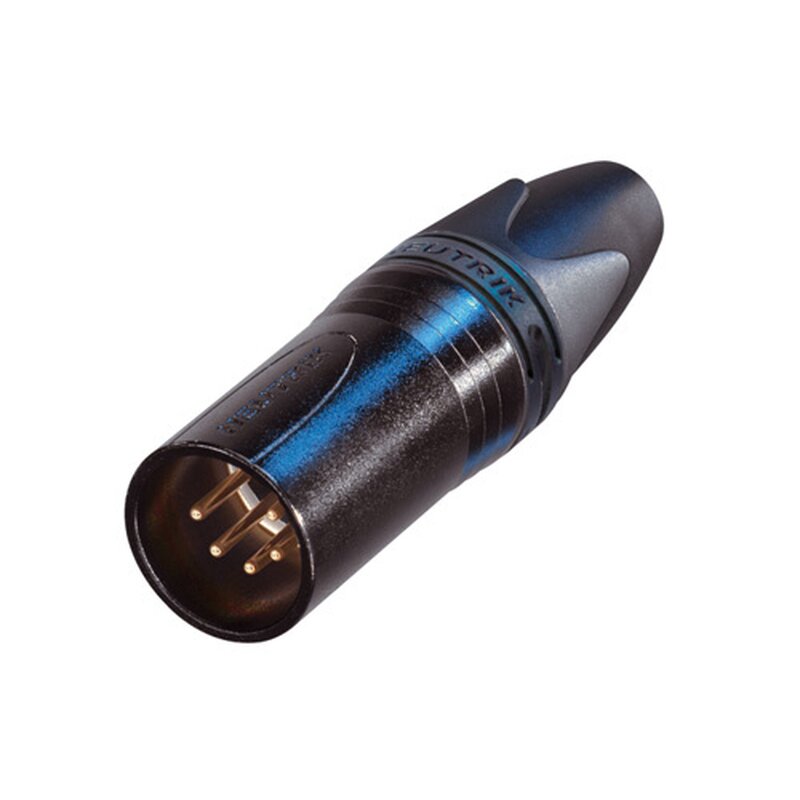

Neutrik NC5MXX-B XLR Cable Connector

Artikelnummer: NC5MXX-B-DON

Kategorie: XLR Kabel Steckverbinder


6,95 €
pro 1 Stk.

inkl. 19% USt., zzgl. Versand (kleinteile)

Lieferung in 49 Tagen ab Bestellung

Lieferzeit: 51 - 52 Werktage

Stk.


Beschreibung

5 pole male cable connector with black metal housing and gold contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.



Features & Benefits

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title
NC5MXX-B
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 7 pF
Contact resistance
? 3 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
7,5 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 1.0 mm²
Wiresize
max. 18 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Farbe: schwarz
Serie: XX
Kontakte: Goldbeschichtet
Gehäuse: Schwarz verchromt
Versandgewicht: 0,10 Kg
