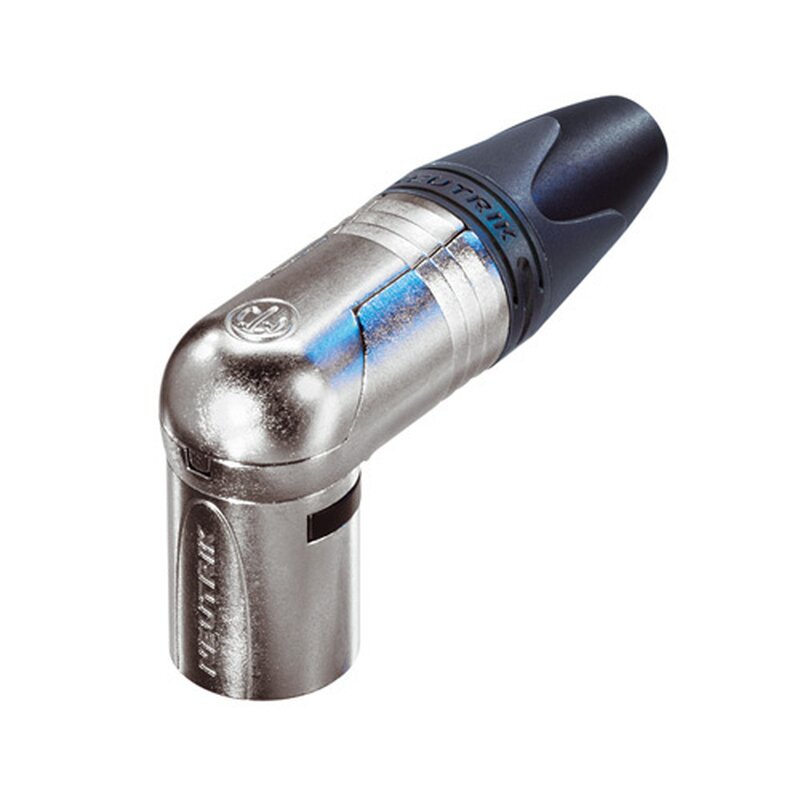

Neutrik NC5MRX XLR Cable Connector

Artikelnummer: NC5MRX-DON

Kategorie: XLR Kabel Steckverbinder


8,59 €
pro 1 Stk.

inkl. 19% USt., zzgl. Versand (kleinteile)

Lieferung in 49 Tagen ab Bestellung

Lieferzeit: 51 - 52 Werktage

Stk.


Beschreibung

The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

5 pole right angle male cable connector, nickel housing, silver contacts



Features & Benefits

  • Extra slim right-angle connector
  • 7 selectable cable outlet positions
  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Coloured rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product



Outlet Positions

Product
Title
NC5MRX
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 7 pF
Contact resistance
? 3 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 2 G? (initial)
Rated current per contact
7,5 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 1.0 mm²
Wiresize
max. 18 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
2 µm Ag
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Serie: RX
Kontakte: Versilbert
Pins: 5-Pol
Gehäuse: Nickel
Versandgewicht: 0,10 Kg
