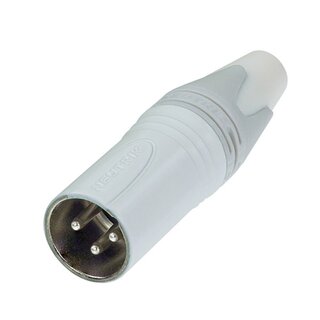

Neutrik NC3MXX-WT XLR Cable Connector

Artikelnummer: NC3MXX-WT-DON

Kategorie: XLR Kabel Steckverbinder


4,83 €

inkl. 19% USt., zzgl. Versand

sofort verfügbar

Lieferzeit: 2 - 3 Werktage

Stk.


Beschreibung

3 pole male cable connector, white painted housing, silver contacts

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.



Features & Benefits

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title
NC3MXX-WT
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 3 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 2 G?
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
2 µm Ag
Contacts
Brass (CuZn38Pb3)
Insert
Polyamdie (PA 6.6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
White painted
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Serie: XX
Kontakte: Versilbert
Versandgewicht: 0,02 Kg
Artikelgewicht: 0,01 Kg
