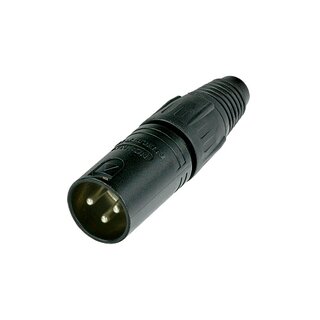

Neutrik NC3MX-BAG XLR Cable Connector

Artikelnummer: NC3MX-BAG-DON

Kategorie: XLR Kabel Steckverbinder


3,02 €

inkl. 19% USt., zzgl. Versand (kleinteile)

sofort verfügbar

Lieferzeit: 2 - 3 Werktage

Stk.


Beschreibung

3 pole male cable connector with black metal housing and silver contacts.

The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.



Features & Benefits

  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
  • Coloured rings and boots available for coding and marking
  • UL recognized components
Product
Title
NC3MX-BAG
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 3 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
2 µm Ag
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Environmental
Approvals
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Farbe: schwarz
Serie: X
Kontakte: Versilbert
Gehäuse: Schwarz verchromt
Versandgewicht: 0,10 Kg
