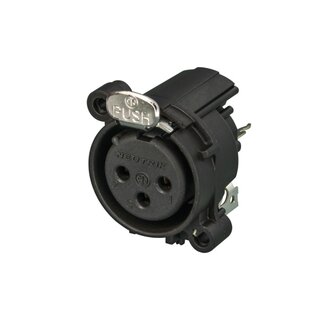

Neutrik NC3FAV1 XLR Chassis Connector

Artikelnummer: NC3FAV1-DON

3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, vertical PCB mount

Kategorie: XLR Einbaubuchsen


0,98 €
pro 1 Stk.

inkl. 19% USt., zzgl. Versand (kleinteile)

Lieferung in 49 Tagen ab Bestellung

Lieferzeit: 51 - 52 Werktage

Stk.


Beschreibung

3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, vertical PCB mount

The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed tulip type contacts with hard gold plating and polished contact areas. UL recognized component.



Features & Benefits

  • Smallest XLR receptacles, highest packing density
  • Plastic housing, steel latch lock
  • Tulip type female contact
  • Polished contact areas and hard gold plating
  • Housing flammability UL94 V-0
Product
Title
NC3FAV1
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 6 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Grounding Options
Pin 1 connected direct to front panel and connector shell, no separate ground contact
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiring
vertical PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
A
Mounting
A-Screw
Material
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Environmental
Approvals
UL
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

Serie: etherCON Einbaubuchsen
Kontakte: Goldbeschichtet
Pins: 3-Pol
Versandgewicht: 0,10 Kg
