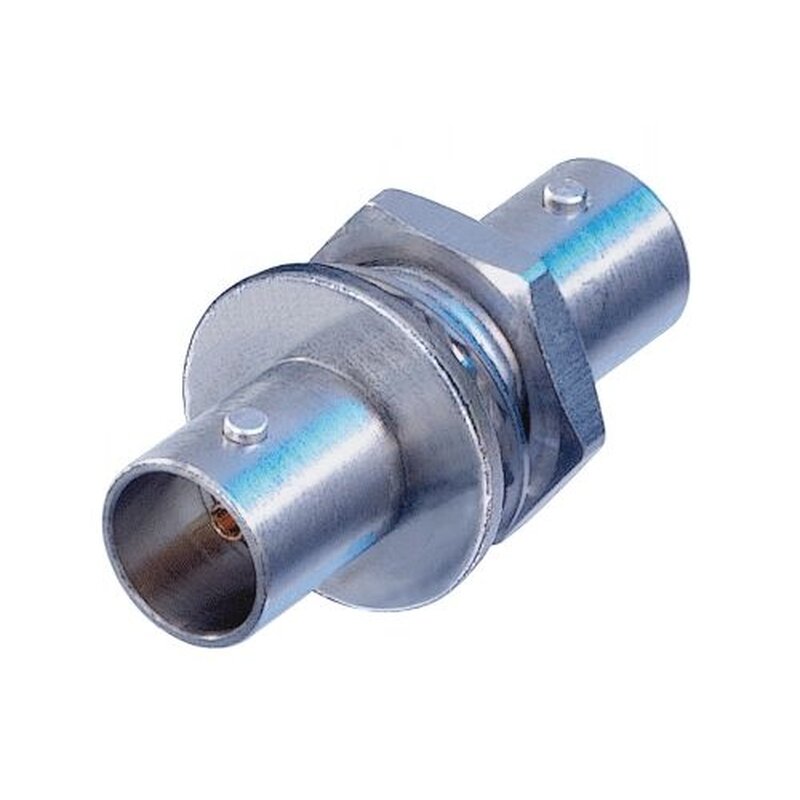

Neutrik NBB75FG Cable Jacks Panel Version

Numéro d'article: NBB75FG-DON

Catégorie: Neutrik

7,15 €

y compris 19% T.V.A., plus livraison

Prêt pour l'expédition dans les jours50e

Temps d'expédition: 52 - 53 journées de travail

Grounded BNC cable jack for panel mount, feedthrough, grounded

Neutrik's BNC cable jacks for panel mount offer a true 75 ? design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

Features & Benefits

Gold plated cage type center contact
True 75 ? design meets the stringent HD requirements
Grounded panel mount

New cage type contact

Closed contact design - extremely robust
Gold plated cage type clip - best possible shielding and lowest contact resistance

Product

Title

NBB75FG

Connection Type

BNC 75 ?

Gender

female

Electrical

Signal Type

HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV

Contact resistance

? 3 m? (inner)

Contact resistance

? 2 m? (outer)

Dielectric strength

1,5 kVdc

Impedance

75 ?

Insulation resistance

> 5 G?

Rated voltage

<50 V

VSWR

?1.050/>32 dB up to 1 GHz
?1.065/>30 dB up to 2 GHz
?1.100/>26 dB up to 3 Ghz

Mechanical

Insertion force

< 25 N

Lifetime

> 1000 mating cycles

Locking device

Bayonett

Mounting direction

Front mounting

Chassis shape

12.7 mm

Material

Contacts

Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)

Insert

PTFE

Shell

Polyacetal (POM) (Insulation Sheell)

Shell plating

Optalloy®

Environmental

Temperature range

-30 °C to +85 °C

Series:	BNC panel
