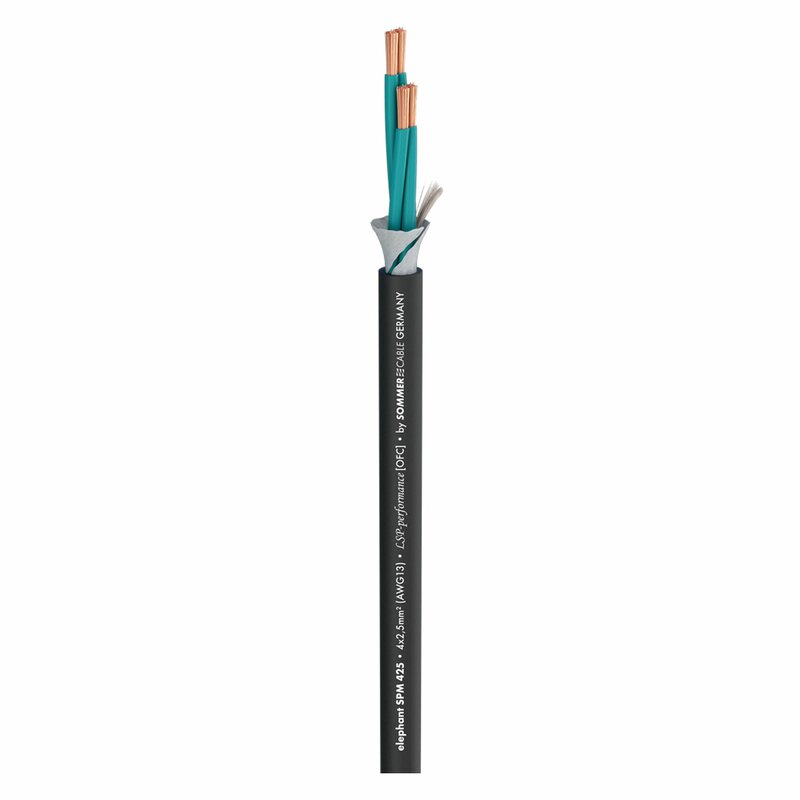

Elephant SPM425
Speaker Cable
Advantages:
• Lossless transmission through special strand arrangement
• Highly flexible and stage-ready, easy to reel
• Compatible with common NEUTRIK® speakON® connectors
• Easy to handle due to well-insulated and numbered conductors
Application:
• Professional PA/sound reinforcement systems
• Surround and woofer systems
• For permanent installation in building technology
Technical Data:
• Item number: 490-0051-425
• Name: Elephant SPM425
• EAN: 4049371002233
• Features: Analog
• Features: OFC high-purity copper
• Application area: Stage/live
• Application area: Mobile use outdoor/indoor
• Application area: Studio/Broadcast
• Application area: Installation
• Application area: ELA 100 V
• Application: Speaker cable
• Color: Black
• Construction: (4LIY2.5mm²)Y
• Jacket material: PVC
• Jacket Ø: 10.20 mm
• Jacket Ø: 0.4016"
• Number of channels (audio): 1
• Inner conductor (audio): 4
• Inner conductor (audio): 2.50 mm²
• Inner conductor (audio): 0.0039 sqin
• Inner conductor Ø (audio): 1.78 mm
• Inner conductor Ø (audio): 0.0701"
• AWG (audio): 13
• Cu strands (audio): 78
• Cu strand Ø (audio): 0.20 mm
• Cu strand Ø (audio): 0.0079"
• Conductor insulation Ø: 3.05 mm
• Conductor insulation Ø: 0.1201"
• Weight per 1 m: 182.7 g
• Weight per 1000 ft: 121.1249 lbs
• UV Resistant: Yes
• Fire load per m: 0.8 kWh
• Design: Round
• Packaging, VPE: Sold by the meter
• Temperature min.: -25 °C
• Temperature max.: 70 °C
• Width: 10.2 mm
• Width: 0.4016"
• Height: 10.2 mm
• Height: 0.4016"
• Insulation resistance at 1 km: 0.005 GΩ
• Insulation resistance at 1000 feet: 0.0015 GΩ
• Insulation resistance at 1 km (audio): 0.005 GΩ
• Insulation resistance at 1000 feet (audio): 0.0015 GΩ
• Conductor resistance at 1 km: 7.7 Ω
• Conductor resistance at 1000 ft.: 2.347 Ω
• Test voltage: 2000 V
• CPR-Euroclass: Fca
