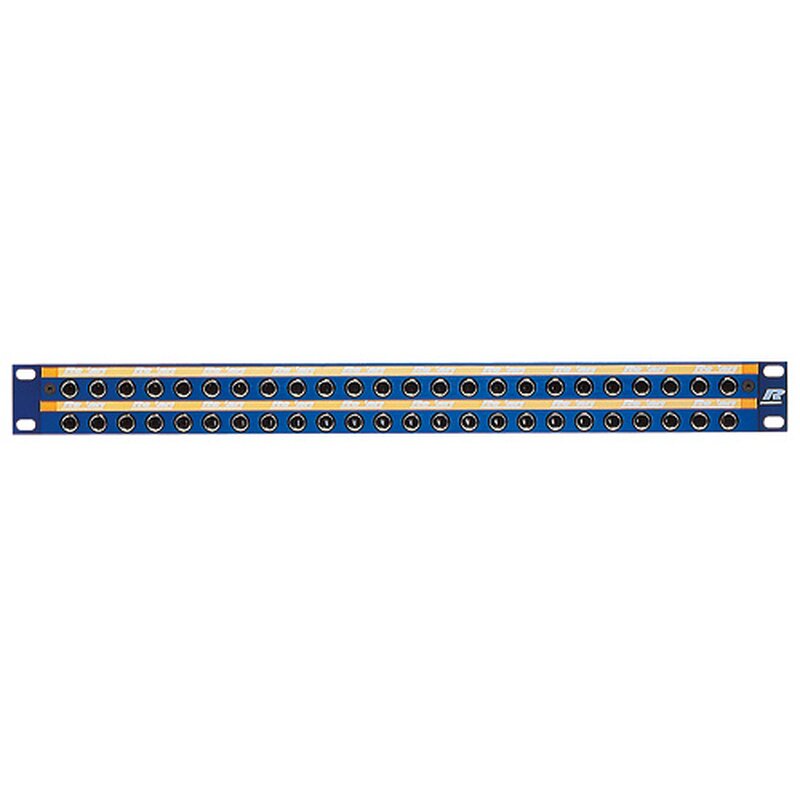

Neutrik LF48-1D Longframe Patch Panel
48 way Longframe B-Gauge Patch Panel, blue front panel, extra rugged jack sockets which allow customized normalling
Features & Benefits
- 48 way Longframe B-Gauge patchbay
- Accepts both European BPO 316 and US MIL-P-642/2 style phono plugs
- 2 rows of 24 LF501 jack connectors
- Jack designed from rigid nickel-plated die-cast aluminium with nickel-silver spring contacts
- Reliable support for connecting looms by steel lacing bar
Product
Title
LF48-1D
Connection Type
Patch Panel
Electrical
Signal Type
AES/EBU Signals (digital)
Contact resistance
< 20 m?
Contact resistance
< 15 m?
Dielectric strength
> 0.5 kVdc
Frequencyrange
DC to > 50 MHz
Insulation resistance
> 1 G? @ 500 V dc
Channel separation
> 100 dB @ 10 kHz, 600 terminated
> 40 dB @ 6 MHz, 110 terminated
> 40 dB @ 6 MHz, 110 terminated
Handles Phantom Power
Yes
Mechanical
Insertion force
< 25 N
Withdrawal force
> 10 N
Lifetime
> 20000 mating cycles
Locking device
Retention spring
Material
Contacts
Pallatium plated (Switch contacts)
Shell
diecast Al (Jacks)
Shell plating
Blue front panel
Front panel
anodised Al
Lacing bar
powder coated steel
Environmental
Temperature range
-30 °C to +80 °C
Product specific
Dimensions
482 mm x 44 mm (19'' x 1U)
Depth
115 mm (4,53'')
Mating plug
Longframe B-Gauge plug acc. BPO316/MIL-P-642/2
Channels
48 way
| Series: | Patch Panel Longframe |
